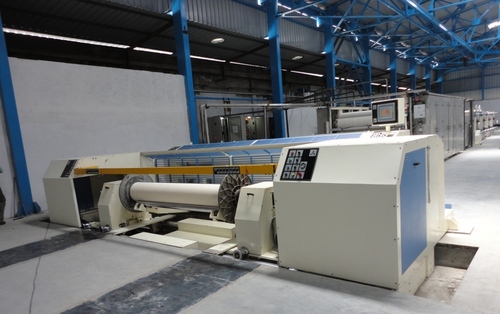

Yarn Sizing Machine

Yarn Sizing Machine
Yarn Sizing Machine
Product Code : PTM - 03
Brand Name : PRISM TEXTILE MACHINERY
Product Description

We are a prominent manufacturer and supplier of a wide array of Yarn Sizing Machine. These machines are created utilizing imaginative methods and systems. These machines offer effective measuring of fabrics guaranteeing aversion of yarn breakage amid the weaving procedure. They embody high velocity capacity bringing about time effectiveness and better generation. Our machines are accessible in aggressive estimating which are in standard with the business sector rates. Our array of Yarn Sizing Machine is very much acclaimed for notable components like fast and productive execution, suitable for a wide range of fabrics, scraped area resistance and so on.

 General

  •     Ultimate technology & designs give highest quality sized warp beams.
  •     Fully auto control of all parameters by PLC.
  •     Zonewise constant stretch control by AC servo drive, load cell and PLC.
  •     Uniform, required size pick up.
  •     Low hairiness with uniform moisture.
  •     Low stretch.
  •     Easy reproducibility due to recipe data stored.
  •     Less Operator interference.
  •     Full safety during operation.
  •     Easy Supervision & operation due to graphics display & data save of actual & set process parameters.

Head Stock

  • Beam arbour is motor driven.
  • Working width 1200 to 5000mm.
  • Flange diameter upto 1400mm.
  • Operator friendly operations.
  •  Pneumatic press rollers system.
  • Hydraulic beam loading & doffing System.
  • Movable, expandable comb.
  • Taping device.
  • Speed upto 120 MPM.
  • Separate winder available for large flange diameter for , jute, etc.

Waxing device

  •     High tech auto level & temperature control device.
  •     Variable speed for low/ high pick up.
  •     Auto synchronized with M/C speed for uniform coating.

 Dryers

  • Various configuration to suit application & product.
  • Gentle yarn treatment with positive drive, slip drive, temperature controls.
  • Torque motor drive optionally


Size Box


  • Single/ Double size box with different designs to suit the application & Product.
  • 2Dip/ 2Nip or single dip/single nip.
  • Horizontal or vertical exit.
  • Low volume size box tank.
  • Size box with prewet is optional.
  •  Size level & temperature controller.
  • Size circulation.
  • Equi pressure anti deflaction top squeezing rollers.
  • Auto variable squeezing pressure according to speed variation.
  • Perfect wet splitting by rotating lease rod, heated rollers or dryer arrangements
  • Positive feed nip for over feed / under feed.
  • Size filter is optional.
