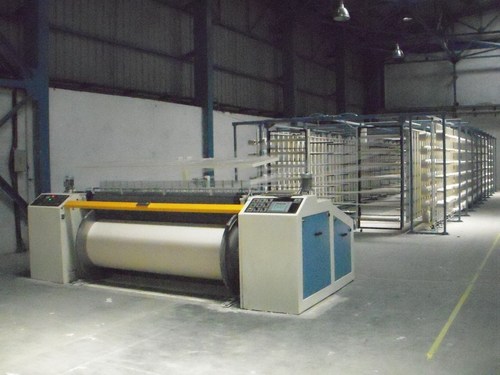

Warping Machine

Warping Machine
Warping Machine
Product Code : PTM - 01
Brand Name : PRISM TEXTILE MACHINERY
Product Description

We are a prevalent manufacturer and supplier of a wide ambit of Warping Machine. We have with us a broad line of distorting machines for modern utilization. These machines are essentially utilized for weaving fabrics produced using cotton and jute. Our machines are composed and manufactured utilizing quality crude material and we test them to guarantee zero deformities. These wrapping machines are accessible at most focused costs. Our ambit of Warping Machine is all around requested by customers because of features, such as, programmed consistent liner rate, gliding weight rollers, variable winding velocity, variable twist pitch, etc.

  • Hydraulic power pack with standard components.
  • Angular Contact bearing for beam pressure device.
  • Drive with Crompton /ABB A.C. motor.
  • AC Frequency inverter Drive of standard make.
  • Logic stick for easy & Fault free working.
  • Sturdy frame & wall structure for vibration free working.
  • Twin Disc type brake system for quick stop.
  • Dynamically balanced drum for smooth working at high speed.
  • Dynamically balanced light weighted measuring guide roller.
  • Dynamically balanced machine pulley.
  •  Photo electronic rays sensor as beam guard for full safety of
  • All components including nuts & bolts are used of standard make.
  • Machine look & design made architecturally as well as user friendly.
  • Operating panel is made wrapper friendly with special design.
  • Simple designs with high technology for better performance.



     Technical Specifications :

Machine speed

50 mpm to 700mpm

Machine width available

60.5,63.5,68.5,72.5,78.5,54.5 or 1550mm,1600mm,1750mm, 1 850mm, 2000mm,2400mm

Workable Dia

22 - 24 - 26 - 28 -30 or 560mm, 610mm, 660mm, 710mm, 760mm

Workable barrel Dia

8”/200mm, 10”/250mm, 12”/300mm

Shaft Dia Available

1.25(32mm) or 1.5(38mm)

Motor HP According to machine size

3 HP to 10 HP

Stop Motion

Electro mechanical System fitted on head stock
